Laurel Electronics, LLC is a Costa Mesa, California company that has designed and built electronic instruments for industrial measurement, control and networking since 1990. Its core is the modular Laureate family: 1/8 DIN digital panel meters, counters and timers, DIN-rail transmitters, MAGNA large-digit displays and the QLS current loop splitter, with most products made at its Southern California headquarters.

Controsys stocks Laurel instruments and their accessories, and can configure meters and transmitters to suit the signal, range and communication requirements of each application. See the full product range or the Controsys home page for our panel-building services.

Enquire about Laurel (65) 6841 8834

Laureate series

Panel meters, counters & timers

Digital Panel Meters (Analog Input)

Laureate 1/8 DIN programmable panel meters that display and control analog process signals, built on a modular board system so the same platform covers voltage, current, temperature, strain and resistance measurement.

Input boards for DC volts/amps, true RMS AC, thermocouple (J, K, T, E, N, R, S), RTD (Pt100, Ni120, Cu10), ohms, process/ratiometric and load cell/strain gauge
0.01% of reading ±2 counts accuracy, up to 60/50 conversions per second
5-digit red or green LED display, 14.2 mm (0.56") digits; NEMA-4X (IP65) front when panel mounted
Power 85-264 Vac / 90-300 Vdc (LPS1) or 10-48 Vdc / 12-32 Vac (LPS2), with isolated transducer excitation
Up to five plug-in boards: relays, 16-bit analog output, RS232/RS485/USB/Ethernet/WiFi; front USB-C setup port

Laureate L20000DCV (DC voltage)
DC current (DCA)
Load Cell / Strain Gauge / Microvolt
Scale / Weighing
Process & Ratiometric
True RMS AC Voltage & Current
Thermocouple
RTD
Ohmmeter (Resistance)

Electronic Counters

6-digit Laureate counters for pulse, frequency and encoder signals, used for rate indication, totalising, batching and position measurement on production lines and flow systems.

Frequency/rate/period, dual-channel pulse totaliser and analog-input totaliser models
Arithmetic of two channels: A+B, A-B, AxB, A/B, A/B-1
Batch controllers (pulse or analog input), AC phase angle/power factor and quadrature encoder models
Crystal time base calibrated to ±2 ppm, span tempco ±1 ppm/°C typ, drift ±5 ppm/year typ
Same 1/8 DIN modular platform with relay, analog output and serial/Ethernet option boards

Frequency, Rate or Period
Dual-Channel Pulse Input Totalizer
6-Digit Analog Input Totalizer & Process
Batch Controller Pulse Input
Batch Controller Analog Input
AC Phase Angle & Power Factor
Quadrature Encoder Input

Electronic Timers

6-digit Laureate timers that measure elapsed time, intervals between repeating events and pulse duty cycle, triggered by switches, sensors, PLC outputs or AC line signals; the range also includes a serial-input remote display.

6-digit stopwatch/timer, time interval of periodic events, and duty cycle / PWM models
Serial Input 6-Digit Remote Display with -999,999 to +999,999 range
Crystal time base calibrated to ±2 ppm
Start/stop/reset from pushbuttons, proximity sensors, limit switches, contact closures or PLC outputs
Optional relay, analog output and RS232/RS485/Modbus boards; front USB-C setup

6-Digit Digital Stopwatch & Timer
Time Interval of Periodic Events
Duty Cycle & PWM
Serial Input 6-Digit Remote Display

DIN-rail

Transmitters & signal splitters

Transmitters (LT, LTE, LTS)

Compact DIN-rail Laureate transmitters that condition sensor or pulse signals into isolated analog and digital outputs for PLCs, SCADA and data acquisition, available with serial (LT) or Ethernet (LTE) communication, plus the LTS serial-to-analog converter.

LT: isolated 4-20 mA or 0-10 V output plus RS232/RS485 serial I/O
LTE: isolated analog output with Ethernet and Modbus TCP/IP
Plug-in signal boards for DC, true RMS AC, thermocouple, RTD, strain gauge, process, ohms, and frequency/pulse/timer inputs; 0.01% of reading ±2 counts
Dual relays, isolated transducer excitation, detachable screw-clamp connectors, front USB-C setup
LTS: streaming RS232/RS485 ASCII or Modbus RTU/ASCII to 16-bit 4-20 mA / 0-20 mA / 0-10 V / ±10 V output, ±0.02% of span, 22.5 mm DIN case

LT Series (RS232/RS485 + analog)
LTE Series (Ethernet + analog)
LTS Serial-to-Analog Transmitter

Quad Current Loop Splitter (QLS)

A DIN-rail signal splitter/retransmitter that takes one process signal and drives four independent isolated 4-20 mA loops, so a single transmitter can feed meters, PLCs, recorders and loggers on different grounds.

Input 4-20 mA, 1-5 V, 0-5 V or 0-10 V; four independent 4-20 mA outputs
±0.02% max span error at 23°C; 2 ms rise, 7 ms settling to 0.1%
Per-loop ±10% zero/span trim, test point and LED; ±10 V common-mode between outputs
QLS-1: 85-264 Vac / 90-300 Vdc; QLS-2: 10-48 Vdc / 12-32 Vac; 24 Vdc excitation for 2/3-wire transmitters
35 mm DIN rail, 22.5 mm wide, -40 to 70°C; ETL, CE, RoHS 3

QLS-1
QLS-2

MAGNA series

Large digit displays

Large Digit Displays (MAGNA Series)

MAGNA large-digit LED displays for showing process values, counts, rates, time or temperature to people across a plant floor, warehouse or yard.

Digit heights 2.25" (57 mm), 4" (102 mm), 6" (150 mm) and 8" (200 mm), 4 or 6 digits
Readable from about 90 ft (27 m) up to about 320 ft (100 m)
Sealed to NEMA-4 (IP65), 75 mm deep; panel, wall or suspension mounting
Power 95-264 Vac or 11-30 Vdc; normal or outdoor-brightness versions
Options: two or four 2 A relays, analog output, serial I/O, heater for cold climates

MAGNA 2.25" 4-digit / 6-digit
MAGNA 4" 4-digit / 6-digit
MAGNA 6" 4-digit / 6-digit
MAGNA 8" 4-digit / 6-digit

Configure & protect

Option boards & accessories

Option Boards

Plug-in boards that configure Laureate meters, counters and timers for power, alarm/control, analog retransmission and networking; a 1/8 DIN Laureate accepts up to five boards, each isolated from meter and power grounds.

Power boards: 85-264 Vac / 90-300 Vdc or 10-48 Vdc / 12-32 Vac
Dual or quad Form C relays or 120 mA solid-state relays
16-bit isolated analog output: 4-20 mA, 0-20 mA, 0-10 V, ±10 V
RS232, RS485 (RJ11/RJ45), USB, USB-to-RS485 gateway, Ethernet (10/100 Base-T), Ethernet-to-RS485 gateway, WiFi (internal or external antenna)
Protocols: Modbus RTU, Modbus TCP and Laurel Custom ASCII

LPS1 / LPS2 power boards
LDMR / LQMR relay boards
LDSR / LQSR solid-state relay boards
LAO analog output
L232
L485
LMOD
LUSB
LUSB485
LNET
LNET485
LNET1

Accessories

Enclosures, covers, cables, calibration certificates and logging software that complete a Laureate installation on the panel, the bench or in washdown areas.

BOX1/BOX2 NEMA-4X (IP65) polycarbonate wall-mount enclosures for 1/8 DIN instruments
IPC splashproof cover, LCASE 1/8 DIN case and CASE1/CASE2 benchtop cases
CBL01-CBL08 RS232, RS485 and USB data/programming and adapter cables; CBL6/CBL12 power cables; CON01 connector
DLS-XLOG2 Laureate XLog2 data logging software
Certificate of Calibration (CAL-Analog / CAL-Digital)

BOX1 / BOX2
IPC
LCASE
CASE1 / CASE2
CON01
CBL01-CBL08
CBL6 / CBL12
DLS-XLOG2
CAL-Analog / CAL-Digital

Why buy through Controsys

Stock, engineering and service in one place

Regional stockist
Common lines are held in stock, with offices in Singapore, Malaysia, Thailand and Indonesia.
Panel integration
We build Laurel components into complete annunciator, mimic and control panels.
After-sales support
Installations can be modified, extended or upgraded as your requirements change.

Laurel — common questions

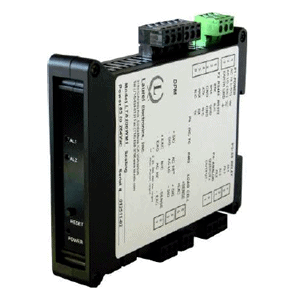

How many Laurel instruments can be networked on one LTNET485?

The LTNET485 device server connects up to 31 Laurel meters or transmitters to Ethernet over an RS485 bus.

Are Laurel meters available for outdoor or wash-down areas?

Yes — the IPC cover and BOX2 enclosure provide NEMA 4X (IP67) protection for 1/8 DIN meters.
