Renu Electronics – PLC, HMI & Automation Hardware

Renu Electronics industrial automation — HMI on a production line

Renu Electronics is an Indian electronics company headquartered in Baner, Pune, with its factory at Ghotawade (Mulshi, Pune), a competence centre in Filderstadt, Germany and an office in Batavia, Illinois, USA. Operating since 1991, it designs and manufactures its own industrial automation hardware — FlexiPanels HMIs (including HMIs with built-in control and I/O), FlexiLogics PLCs, web and Android panels, field I/O, gateways, and more recently VFDs and servo drives — alongside electronics manufacturing services and automotive instrument clusters.

Its products are designed to IEC standards for immunity, emissions and environment and carry CE marking (EMC and Low Voltage Directives) and RoHS compliance, with UL Class I Div 2, IP66 and NEMA 4 ratings on selected models. Controsys supplies Renu PLCs, HMIs and gateways for machine builders and system integrators. See the full product range or the Controsys home page for our panel-building services.

Enquire about Renu (65) 6841 8834

FlexiPanels

HMIs & operator panels

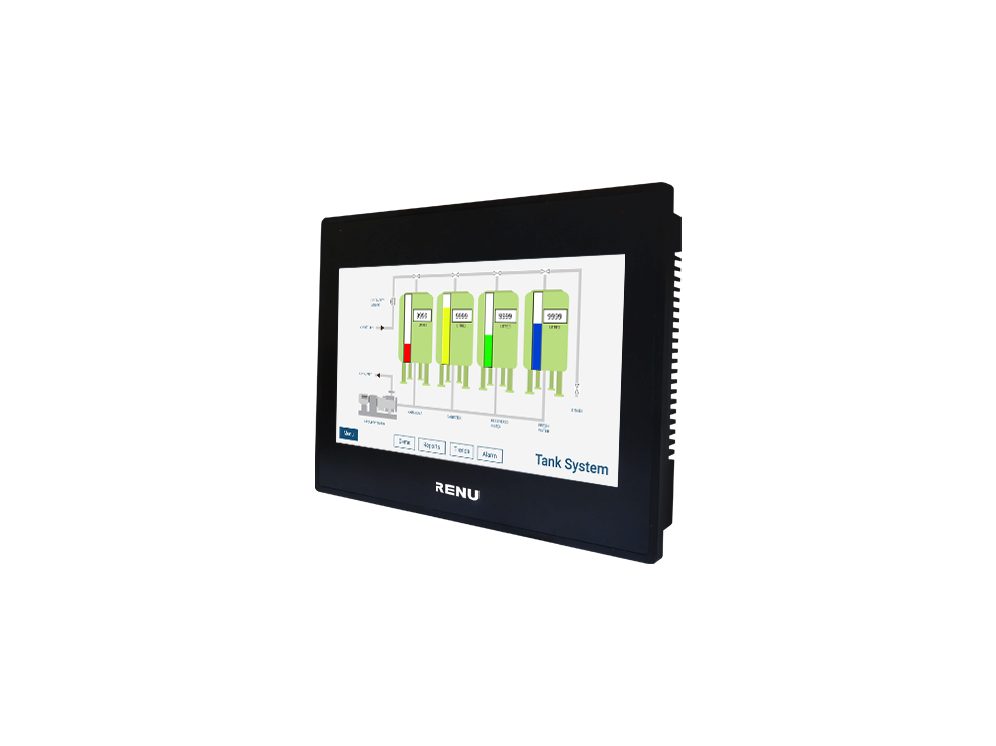

FlexiPanels HMI

Touchscreen operator panels for visualising and controlling machines and plants, which also run an IEC 61131-3 control program internally. The FP2 range covers basic applications; the FP4 range adds more memory and IIoT functions.

FP2-V2 (4.3" and 7") and FP4 (4.3", 7", 10.1", 15.1") resistive-touch HMIs
Built-in controller programmable with IEC 61131-3 software
RS232/RS485 serial, Ethernet, USB host and USB Type-C programming port; SD card up to 32 GB
FP4 adds VNC server, e-mail, FTP, MQTT, NTP and a web server
IP66 front; CE, UKCA, UL Listed Class I Div 2, RoHS

FP2-V2 Series
FP4TN Series
FP2043T-V2
FP2043TN-V2
FP2070T-V2
FP2070TN-V2
FP4043TN
FP4070TN
FP4101TN
FP4151TN-V2

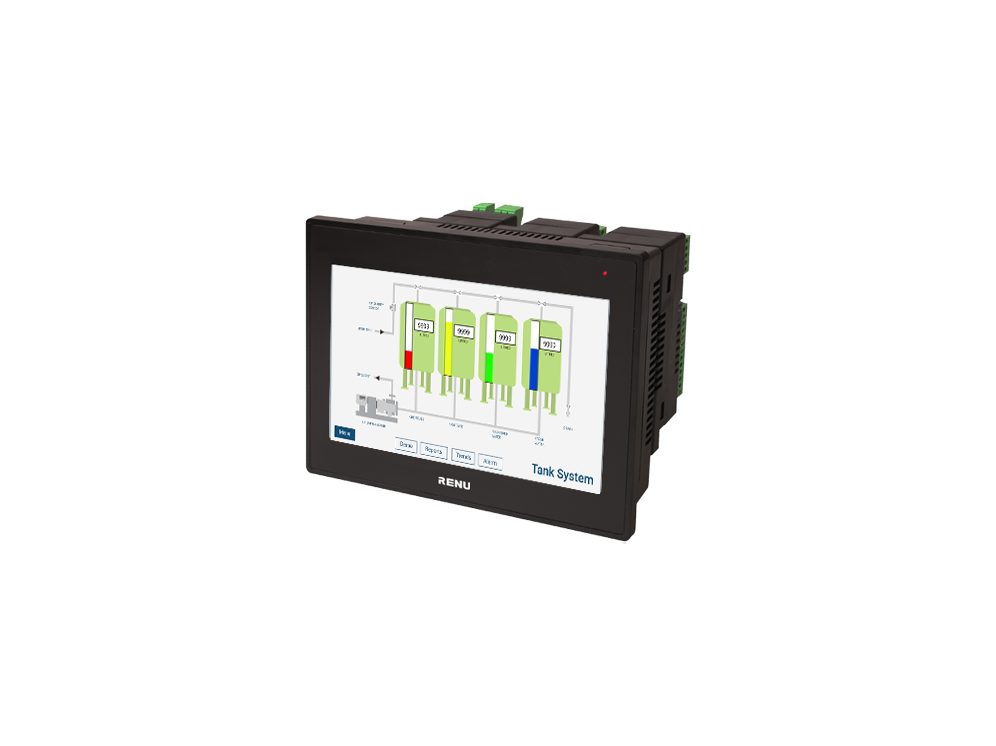

FlexiPanels HMI with I/Os

HMIs that combine the operator screen with PLC logic and local or plug-in digital/analog I/O, so one unit handles both control and visualisation on small machines.

FP2 Basic HMI with pluggable I/O (FP2043T-E, FP2070TN-E) and with local + pluggable I/O (FP2043TN-LE1208P-A0402U-V3, FP2070TN-LE2016RP-A0402U)
FP4 Advanced HMI with I/O in 4.3", 7" and 10.1" (FP4043TN-E, FP4070TN-E, FP4101TN-E), up to 3 pluggable I/O modules
FPEM-V2 pluggable expansion I/O modules for FP2 and FP4 (e.g. FPEM-1614RP-V2, FPEM-1616P-V2, FPEM-1210RP-A0201L-V2)
IEC 61131-3 control programming plus MQTT, VNC, FTP and web server on FP4

FP2 Series Basic HMI with I/O
FP4 Series Advanced HMI with I/O
FP Series Expansion IO (FPEM-V2)
FP2043T-E
FP2043TN-E
FP2070T-E
FP2070TN-E
FP4043TN-E
FP4070TN-E
FP4101TN-E

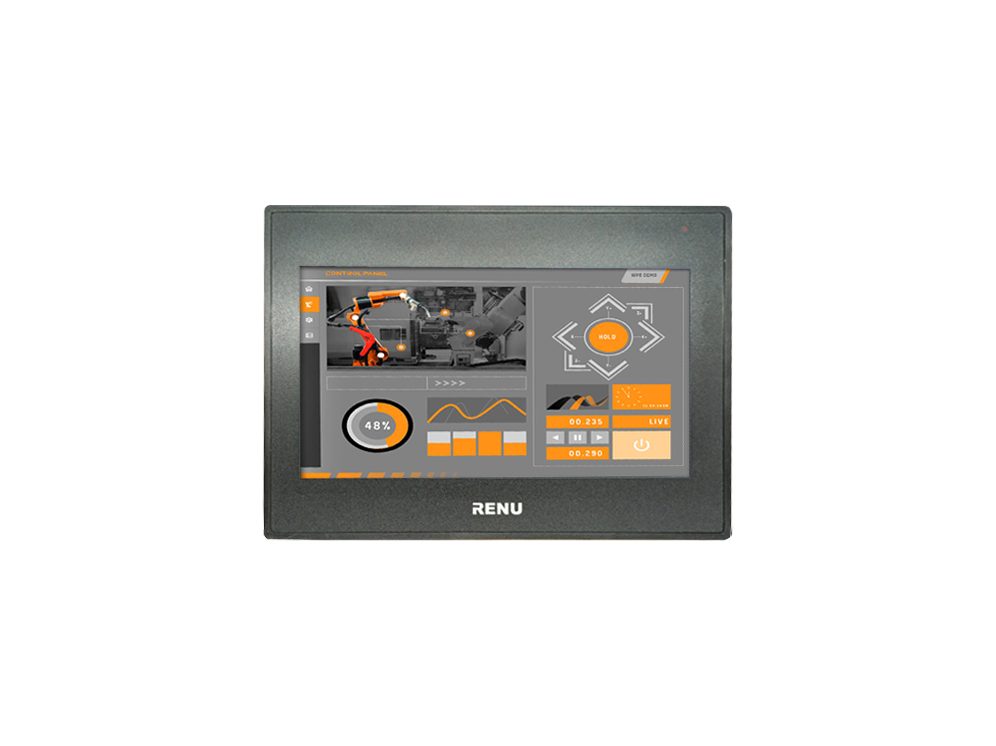

Web Panel Series

Industrial thin-client panels with a built-in Chromium browser that display HTML5 visualisations served from a PLC, PC or cloud web server, suited to machines as well as building control.

WP6 Plus (TN resistive / CN capacitive / CN-M), WP2 Lite and new WP7 models in 4.3", 7" and 10.1"
Works with any web server, e.g. Codesys, Ignition SCADA, Node-RED, Apache
Dual ARM Cortex-A9 CPU with 2D/3D GPU (WP6 Plus)
IP66 front; CE, UL Listed Class I Div 2, RoHS

WP6 Plus
WP2 Lite
WP7
WP6043TN Plus
WP6070TN Plus
WP6101TN Plus
WP6043CN Plus
WP6070CN Plus
WP6101CN Plus
WP6070CN-M Plus
WP6101CN-M Plus
WP2043TN Lite

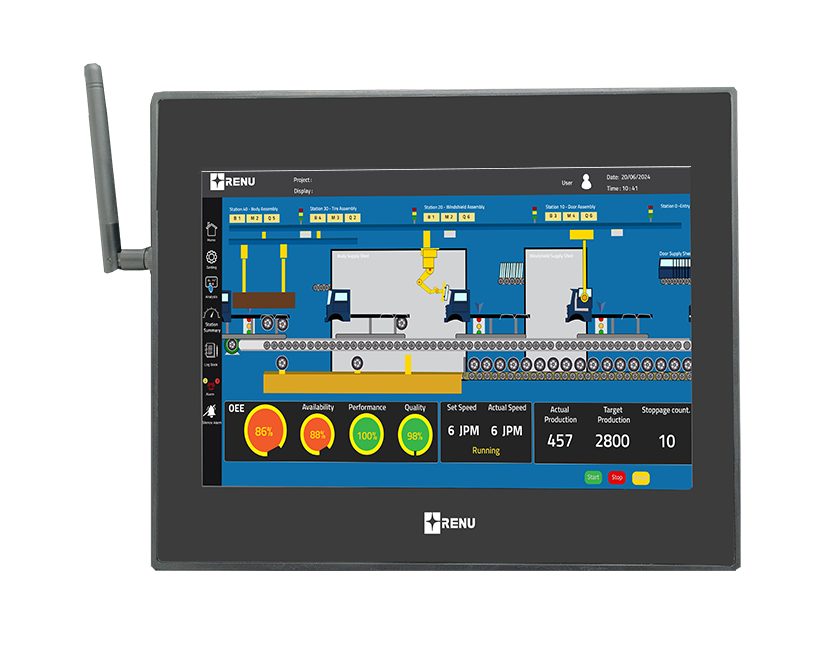

Android Panels

Rugged, fanless Android 10 panel computers that run Android SCADA apps, browser-based apps or custom APKs for industrial and commercial uses such as kiosks and vending.

AP6 Series: AP6070CN (7") and AP6101CN (10.1") capacitive touch
Android 10, quad-core ARM, Wi-Fi and Bluetooth with supplied antenna
Sunlight-readable display; wide operating temperature up to 60 degC
IP66 front; VESA, panel or wall mounting

AP6 Series
AP6070CN
AP6101CN

FlexiLogics

PLCs & I/O

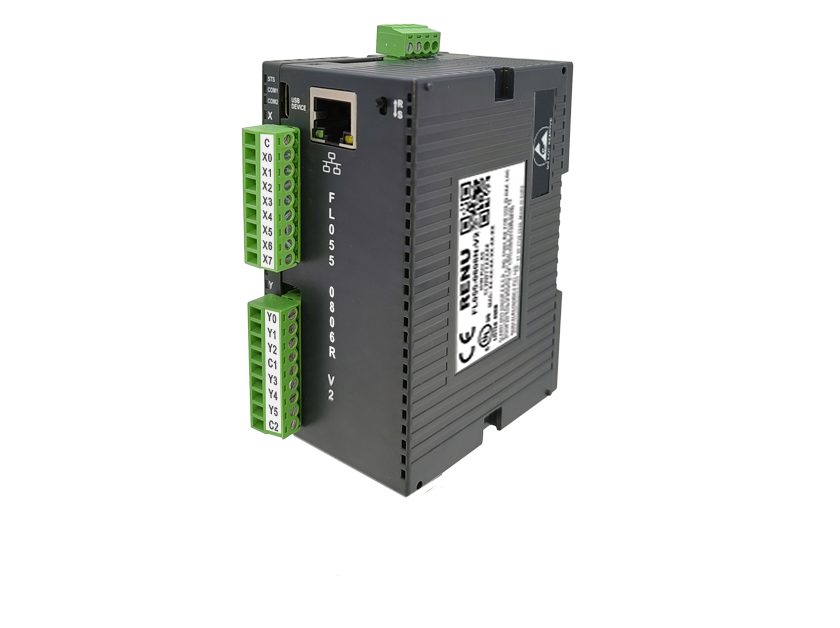

FlexiLogics PLC

Compact DIN-rail micro PLCs for machine and local process control, available as a cost-optimised Eco series and an Ethernet-equipped Standard series, both expandable with plug-in I/O.

Eco Series FL004-V2 and Standard Series FL055-V2 with 8 DI and 6 relay or NPN outputs onboard
IEC 61131-3 programming; USB Type-C device port
FL055: 2 serial ports + Ethernet, Modbus RTU/TCP master/slave, HSC inputs up to 200 kHz, up to 14 plug-in modules
FL004: 2 serial ports, HSC up to 25 kHz, up to 8 plug-in modules
FL expansion I/O: FLD digital and FLA analog modules (e.g. FLA0402L-V2, FLD-0808R-V2)

Eco Series PLC (FL004-V2)
Standard Series PLC (FL055-V2)
FL Expansion I/O (FLD, FLA)
FL004-0806R-V2
FL004-0806N-V2
FL055-0806R-V2
FL055-0808N-V2
FLA0402L-V2
FLA0402U-V2
FLD-0808R-V2
FLD-0808N-V2

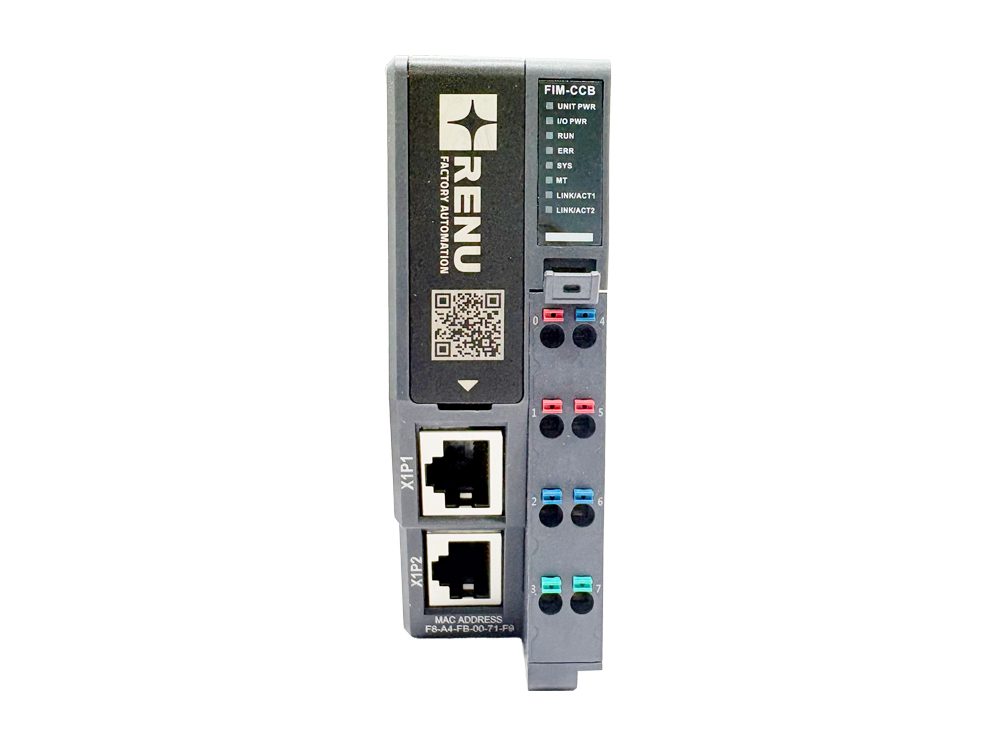

Flexi I/Os

A new ultra-thin, modular remote I/O system: a fieldbus adapter (coupler) heads a slice-style stack of digital and analog I/O modules for distributed I/O on industrial networks.

FIM adapters for EtherCAT (FIM-ECT), PROFINET (FIM-PNT), EtherNet/IP (FIM-EIP), Modbus TCP (FIM-MOD), CC-Link IE Field Basic (FIM-CCB) and CC-Link Ver.2 (FIM-CC2)
Up to 32 I/O modules per adapter; 100 Mbps networking
Digital in/out (FID, FOD), analog in/out (FIA, FOA), plus FPS-24V power and FIM-TER terminator modules
Tool-free wiring, DIP-switch addressing, 500 VAC isolation, LED diagnostics

Flexi I/O Series: Adapter (FIM)
Flexi I/O Series: Module
FIM-CC2
FIM-CCB
FIM-ECT
FIM-EIP
FIM-MOD
FIM-PNT
FIM-TER
FID-1FN
FID-18N
FID-28N

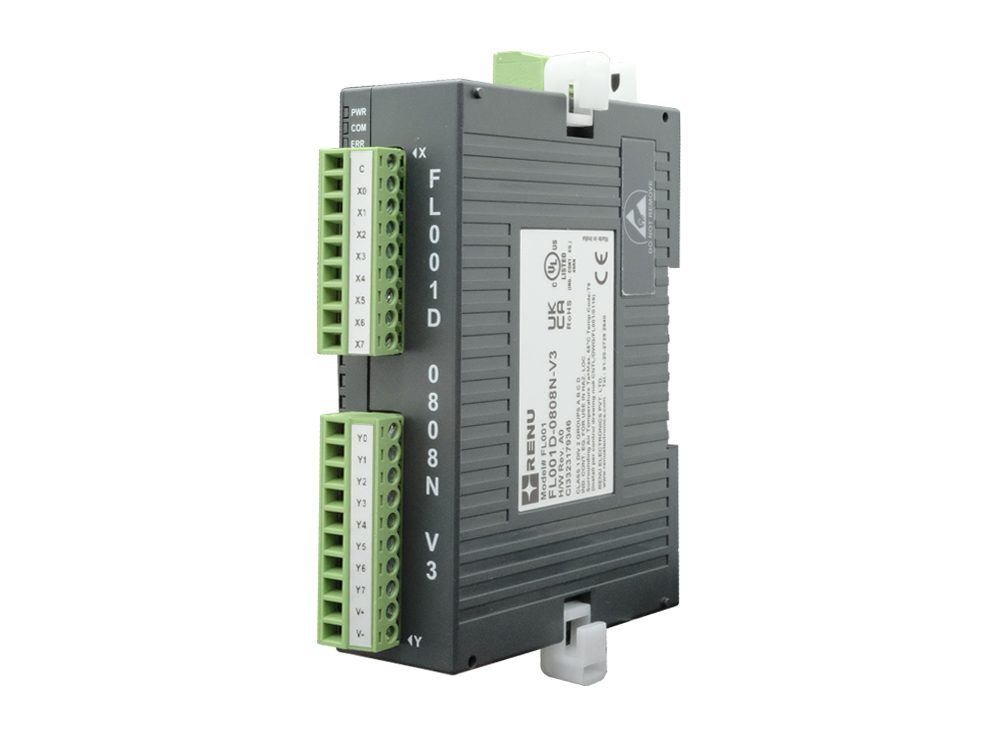

Field I/Os

Compact DIN-rail remote I/O modules that extend PLC or SCADA systems over RS485 Modbus RTU, with digital and analog variants.

FL001D-V3 digital (FL001D-0808N-V3, FL001D-0808R-V3) and FL001A-V3 analog (FL001A-0800L-V3) modules
FIOA analog series, e.g. FIOA-0402-U-16-B
2-wire RS485, high-speed Modbus RTU slave; address, baud rate and parity by DIP switch
Per-channel LEDs; no configuration software needed; CE and UL Listed

Field I/O Series: Analog
Field I/O Series: Digital
FL001D-0808N-V3
FL001D-0808R-V3
FL001A-0800L-V3
FIOA-0402-U-16-B

Gateways & converters

Communication

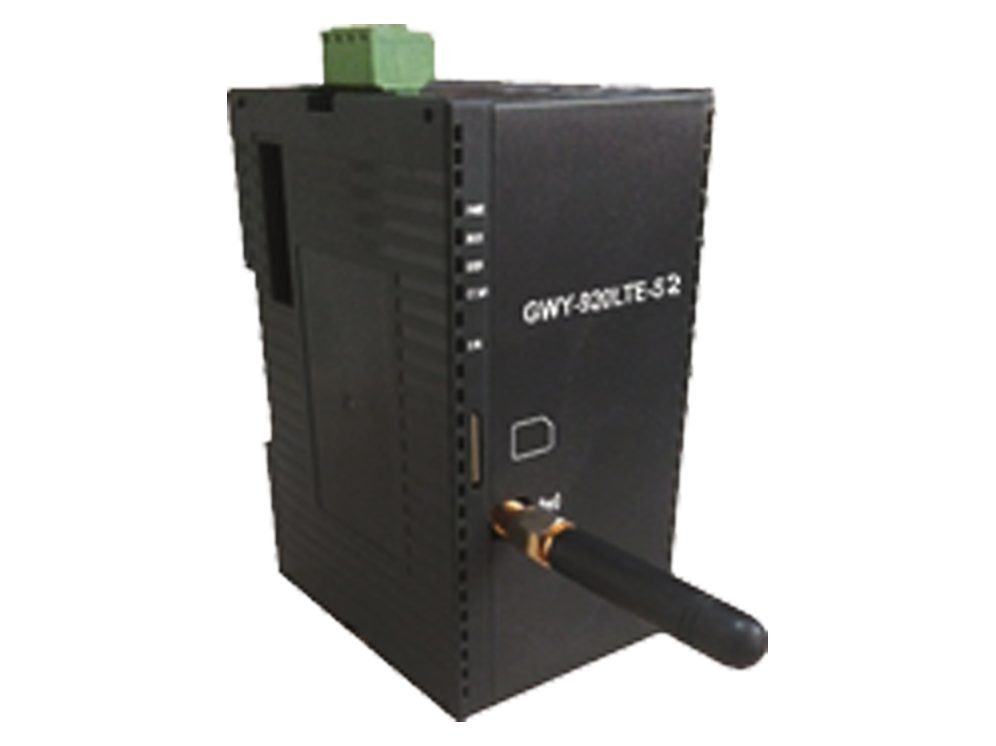

Gateways

Communication gateways that bridge PLCs, field devices and remote servers across different networks, including cellular links for remote monitoring.

GWY920-LTE-S2 programmable GSM/LTE gateway
32-bit RISC processor; MQTT over TCP/IP
Offline data storage; RS232 for configuration and upload/download
IP66 front-panel mounting; CE, UL Class I Div 2, RoHS

GWY920-LTE-S2

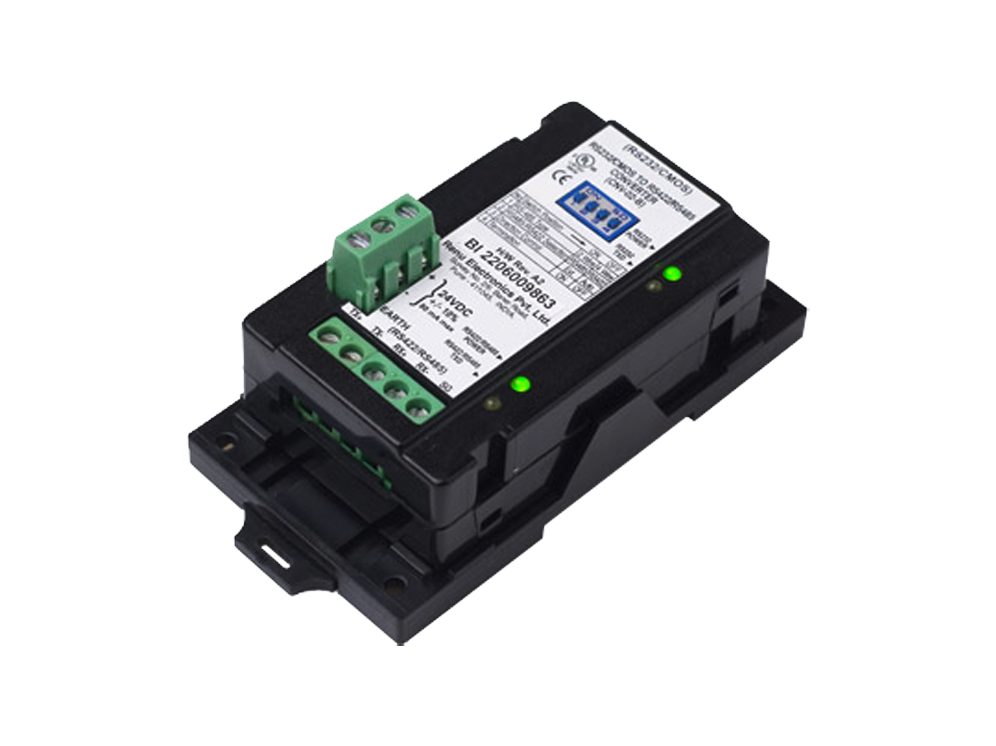

Serial converters & repeaters

Plug-and-play serial interface converters and repeaters for connecting and extending RS232/RS422/RS485 networks.

CNV-02-B serial converter: RS232 / CMOS to RS422 / RS485
CNV-03-B universal RS485 repeater
Isolated power and communication ports; automatic baud-rate detection and direction control
DIN-rail or panel mount; CE / UL

CNV-02-B
CNV-03-B

Motion & speed control

Drives

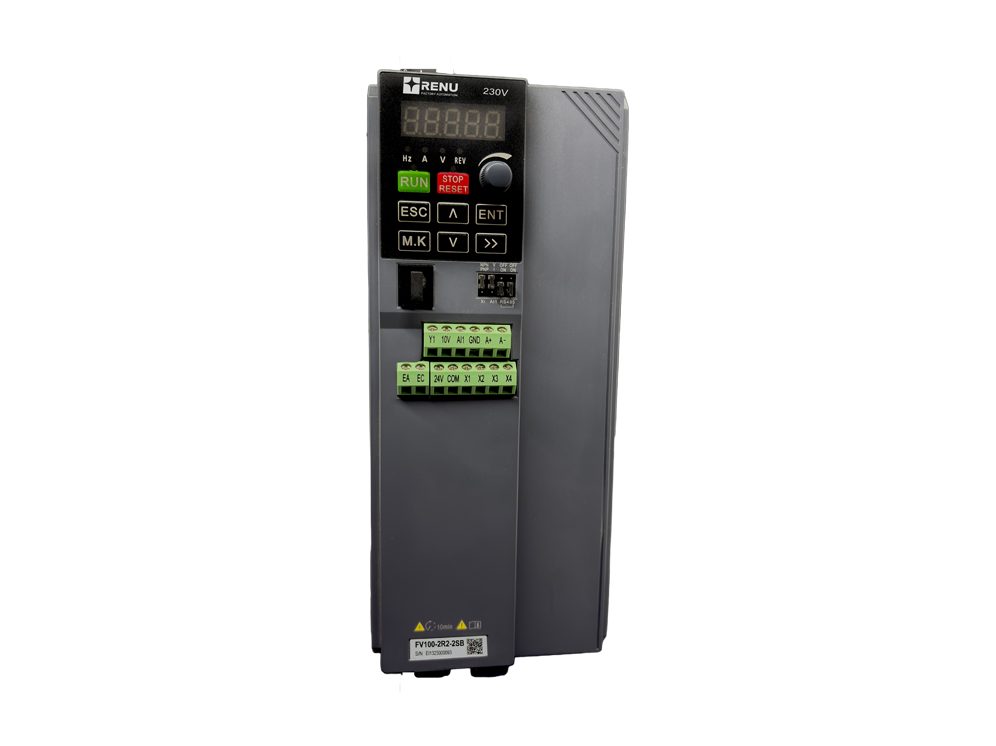

Variable Frequency Drives (VFD)

Renu's new Flexi VFD line of AC drives for motor speed control, ranging from a compact, cost-effective drive for OEMs to high-performance vector drives.

FV100 compact VFD, FV101 high-performance vector drive, FV102 general-purpose vector drive
V/F and sensorless vector control (FV100)
Output frequency up to 3000 Hz (FV100)
Built-in RS485 Modbus for PLC/HMI integration; LED keypad

FV100
FV101
FV102

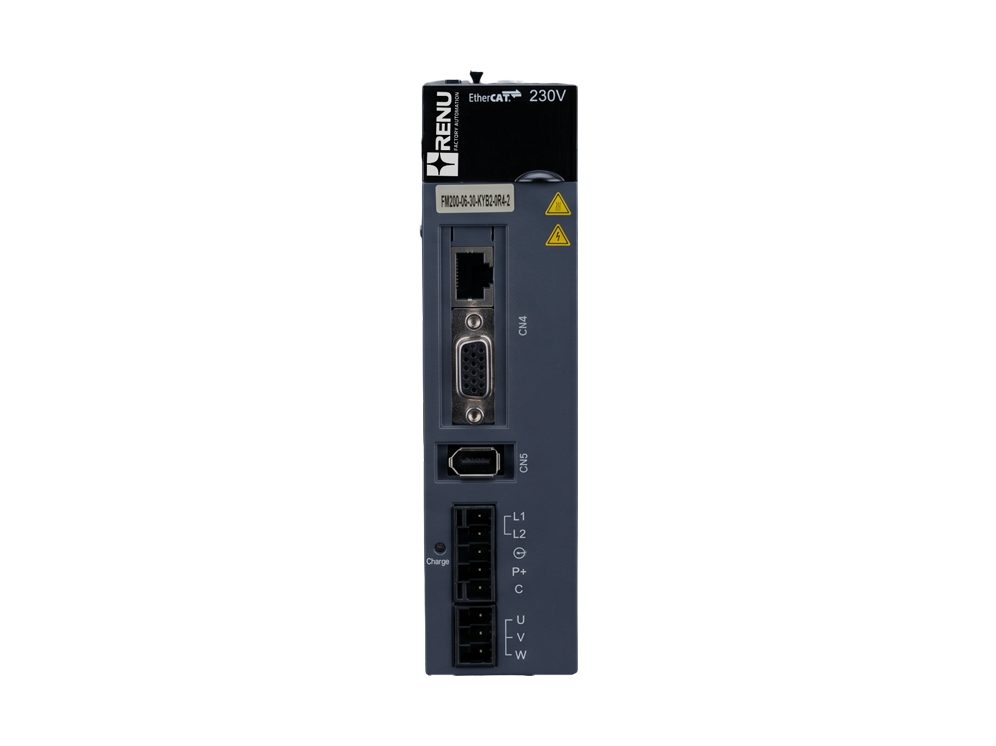

Servo Drives

AC servo drives for precise positioning and motion control on packaging, textile, printing, CNC and robotic machinery, in pulse-train and EtherCAT versions.

FS200 pulse-type servo drive: position, speed and torque modes, 400 Hz bandwidth, Modbus
FS201E EtherCAT bus-type drive: CSP/CSV/CST modes for multi-axis synchronised motion
Supports 17-bit and 23-bit encoders (FS201E)
Auto gain tuning, resonance suppression, built-in regenerative braking

FS200
FS201E
