Quintex GmbH – Hazardous Area Control Equipment

ATEX · IECEx explosion protection

Safe control and signalling for hazardous areas

  • Ex e terminal boxes
  • Ex local control stations
  • Ex d signal towers
  • Ex p pressurisation
  • Trace heating

Stocked & supported in Singapore by Controsys

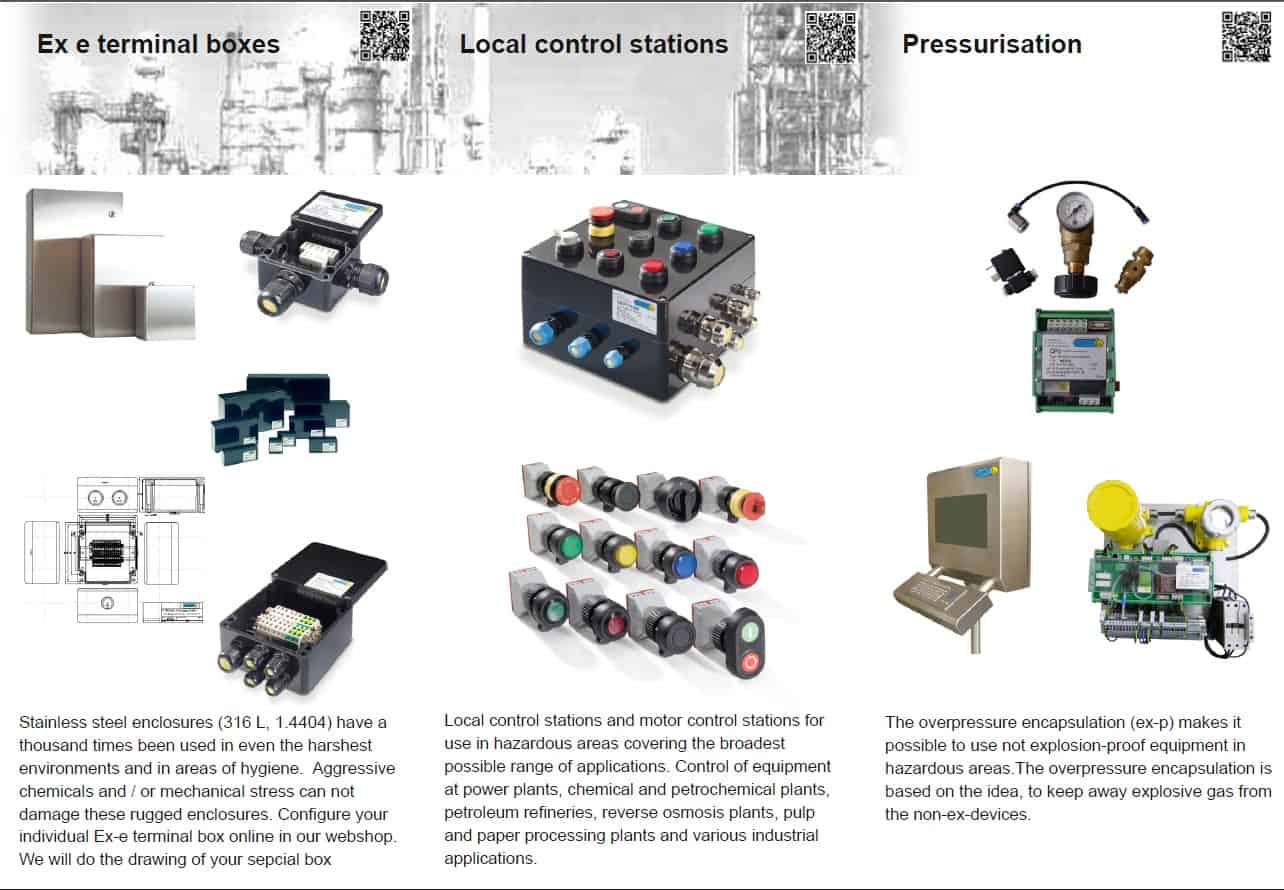

Quintex Ex local control station, Ex e terminal box and Ex d signal tower

Quintex GmbH is a German manufacturer based in Lauda-Koenigshofen (Baden-Wuerttemberg) that was founded in 2007 and specialises in explosion protection and trace heating. It designs and produces components for hazardous areas - line bushings, Ex junction boxes and enclosures, local control stations, command and signalling devices, signal towers and emergency lights, trace heating systems and overpressure (purge) systems - with approvals such as ATEX and IECEx.

Controsys supplies Quintex Ex e, Ex d, Ex i and Ex p equipment and builds it into local control stations and junction boxes for petrochemical, oil and gas and process plants. See the full product range or the Controsys home page for our panel-building services.

Enquire about Quintex (65) 6841 8834

ATEX / IECEx

Explosion-protected equipment

Ex e, Ex d and Ex p components and trace heating for hazardous areas.

Quintex Ex junction boxes & empty enclosures

Ex junction boxes & empty enclosures

Increased-safety (Ex e) junction boxes and empty enclosures for terminals and cable entries in hazardous areas, built in glass-fibre-reinforced polyester or stainless steel and configurable to customer requirements.

  • Polyester (GRP) series QX-P1 to QX-P15H; stainless steel series QX-V2 to QX-V26
  • Stainless steel 1.4301 (AISI 304) or 1.4404 (AISI 316L), hinged or screw covers
  • Up to 2200 V AC/DC and 500 A; -60 C <= Ta <= +100 C; IP66
  • ATEX/IECEx for gas Zone 1/2 and dust Zone 21/22 (e.g. EPS 13 ATEX 1 616, IECEx EPS 14.0048)
  • Online configurators for polyester and stainless-steel versions
  • Junction Boxes Polyester EX
  • Junction Boxes Stainless Steel EX
Quintex Ex local control stations

Ex local control stations

Customisable Ex control stations that house push buttons, switches, lamps and meters for operating machinery on site in hazardous areas, available in polyester or stainless-steel housings.

  • Polyester housings with screw covers; stainless steel 1.4301 / 1.4404 with screw covers or hinged doors
  • Up to 2200 V AC/DC and 1000 A
  • IP66; ATEX/IECEx for gas Zone 1/2 and dust Zone 21/22
  • Fully customisable layout via online product configurator
  • Local Control Stations Polyester EX
Quintex Ex command & signalling devices

Ex command & signalling devices

A compact range of Ex control components - push buttons, emergency stops, selector and key switches, indicator lamps, potentiometers and meters - for building into control stations and panels in hazardous areas.

  • QX-0201 push buttons, emergency stops, selector and key switches; QX-0202 indication lamp; QX-0212 illuminated pushbutton
  • QX-0203-DW potentiometer and QX-0205 ammeter/voltmeter
  • Rated AC 250 V / 16 A, DC 110 V / 1 A; terminals up to 2 x 2.5 mm2
  • Silver contacts (gold optional); -55 C <= Ta <= +60 C
  • ATEX and IECEx certified
  • QX-0201-P1+2
  • QX-0201-P3
  • QX-0201-P6/P7
  • QX-0201-P4
  • QX-0201-K/S
  • QX-0201-P/S
  • QX-0201-Y0
  • QX-0201-Y6/Y5
  • QX-0202
  • QX-0212
  • QX-0203-DW
  • QX-0205
Quintex Ex signal towers & exit lights

Ex signal towers & exit lights

Flameproof visual signalling for hazardous areas: modular LED signal towers and LED emergency exit / escape-route lights.

  • Signal Tower EX: Ex d, borosilicate glass, modular with up to 5 modules (steady or flashing)
  • Signal tower supply AC 110 V, AC 230 V or DC 24 V; -40 to +50 C
  • Emergency Exit Light EX: LED, with or without monitored battery, various pictograms
  • ATEX EPS 16 ATEX 1 099 and IECEx EPS 16.0046 (signal tower)
  • Signal Tower EX
  • Emergency Exit Light EX
Quintex Ex p overpressure systems

Ex p overpressure systems

Pressurised (purged) control cabinet systems that let standard non-Ex equipment operate in hazardous areas by keeping the explosive atmosphere out, with pressure monitoring, Ex power contactors and gas detection.

  • Standard Overpressure System with QSS pressure monitoring; ATEX/IECEx, protection 'sb'
  • QSS uses gas detection instead of pre-purging, saving time and purge air
  • QSU controller (QUINGUARD) switches at 5 mbar; AC 230 V / DC 24 V; -25 to +60 C
  • SC power contactors: 3- or 4-pole, up to AC 690 V and 1000 A, -40 to +55 C
  • Overpressure system patented in 2009
  • Standard Overpressure System
  • Pressure Monitoring System QSS
  • Overpressure Controller QSU (QUINGUARD)
  • Power Contactor SC
  • Gas Detection Technology
Quintex Ex d line bushings

Ex d line bushings

Potted Ex d cable/wire feed-throughs that carry conductors from a flameproof enclosure into another enclosure or area while maintaining the flameproof barrier. Offered in screwable, pluggable, two-path and bolt versions, plus a combined Ex d / Ex e terminal variant.

  • Threads M10 to M42 standard (up to M72 on request); 0.08-185 mm2 conductors, up to 99 wires
  • Standard -55 to +115 C; high-temperature version -60 to +150 C
  • Bolt bushings LT: up to 6600 V and 10-630 A
  • LBCON: Ex d bushing with Ex e terminal block, max. 400 V / 20 A, Ethernet option
  • Approvals: ATEX (EPS 11 ATEX 1 342 X), IECEx (IECEx EPS 11.0004X), UKEX, FM, CSA, UL, CCC, KCs
  • Screwable line bushings
  • Pluggable line bushings
  • Two-path line bushings (type LZ)
  • Bolt bushings (type LT)
  • LBCON Ex d with terminal block in Ex e
Quintex Electrical trace heating

Electrical trace heating

Electrical trace heating for frost protection and process-temperature maintenance on pipes, tanks and equipment, covering heating tapes and cables, connection systems, controllers and heating devices for hazardous and general/commercial use.

  • Self-limiting tapes ILLw, ILM(w), ILH, ILS(w) up to 250 C and 120 W/m; constant-wattage IPH..CF / IPS..A up to 425 C
  • Single-core cable ISK up to 260 C; mineral-insulated cable up to 650 C
  • Connection sets IAL/IAK and AG / AG_Ex / AG 2.. junction boxes
  • Mechanical (IRM, IR2M..Ex) and electronic (IRE168, IRE16E Exd, IR2PT100) controllers
  • ATEX certificates e.g. CML 20ATEX3158, DEKRA 15ATEX0095 U
  • Single core heating cable ISK
  • Mineral insulated heating cable
  • Junction box AG / AG_Ex / AG 2..
  • Heating plate IH2
  • Motor anticondensation heater MH/MS

Typical protection markings

  • II 2G Ex db eb [ia] IIA, IIB, IIC T6, T5, T4 Gb
  • II 2G Ex db eb [ib] IIA, IIB, IIC T6, T5, T4 Gb
  • II 2D Ex tb IIIC T120°C Db

Marking varies by product — confirm the certificate for the specific item with Controsys before specification.

Why buy through Controsys

Stock, engineering and service in one place

  • Regional stockist

    Common lines are held in stock, with offices in Singapore, Malaysia, Thailand and Indonesia.

  • Panel integration

    We build Quintex components into complete annunciator, mimic and control panels.

  • After-sales support

    Installations can be modified, extended or upgraded as your requirements change.

Quintex — common questions

Which certifications do Quintex products carry?

Quintex hazardous-area equipment is certified to ATEX, IECEx and GOST, with protection types Ex e, Ex d, Ex i and Ex p depending on the product.

Can Controsys build a complete Ex local control station?

Yes — Controsys builds Ex e local control stations and terminal junction boxes using Quintex enclosures and components.
