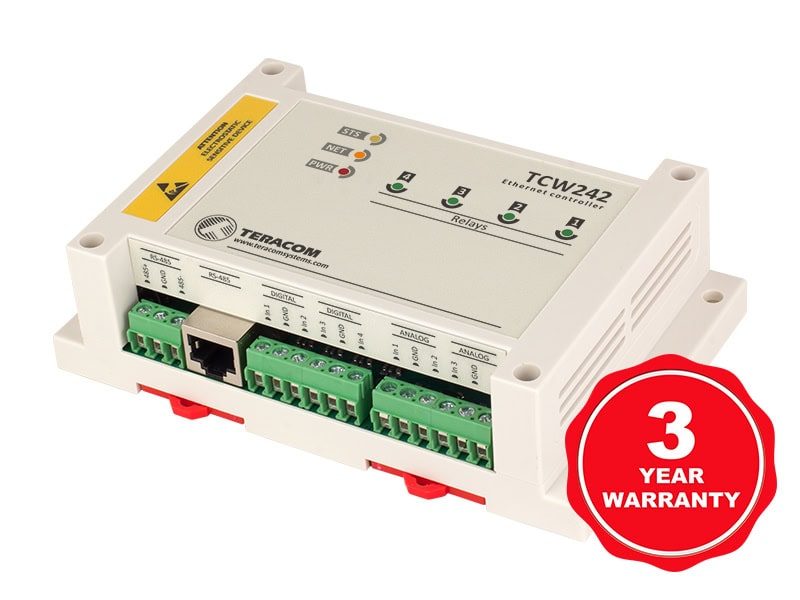

TCW242
Industrial IoT module
Top-tier industrial IoT module for monitoring, control and analysis in demanding industrial applications.
Teracom · supplied by Controsys
Teracom Ethernet Remote Monitoring and Control
Every Teracom Ethernet module has a built-in web server with a graphical interface and supports at least one M2M protocol, so it can work stand-alone or as part of a SCADA system. No special software is needed: all settings and monitoring are done through a standard browser.
All Teracom devices carry a 3-year warranty. Back to the Teracom range or the Controsys home page.
Products

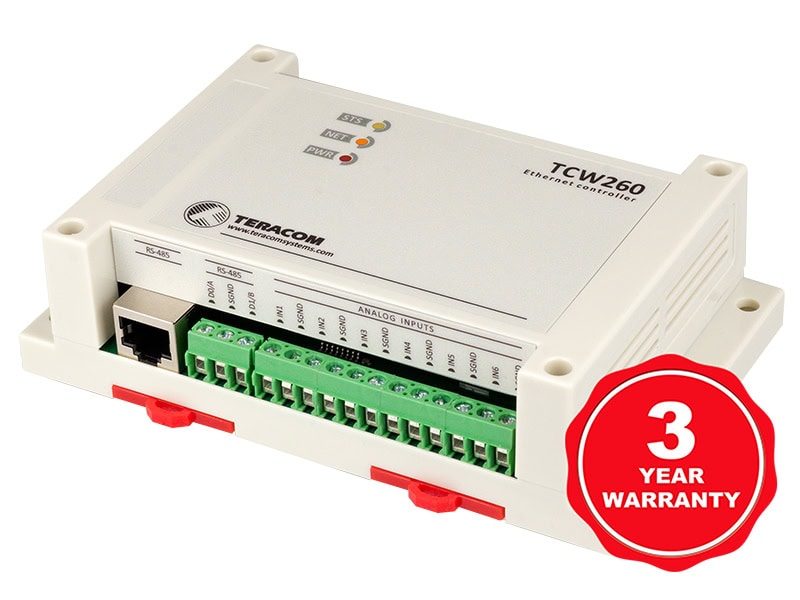

TCW260
Energy monitoring module
Ethernet energy monitoring module with galvanically isolated ports and Modbus RTU support.

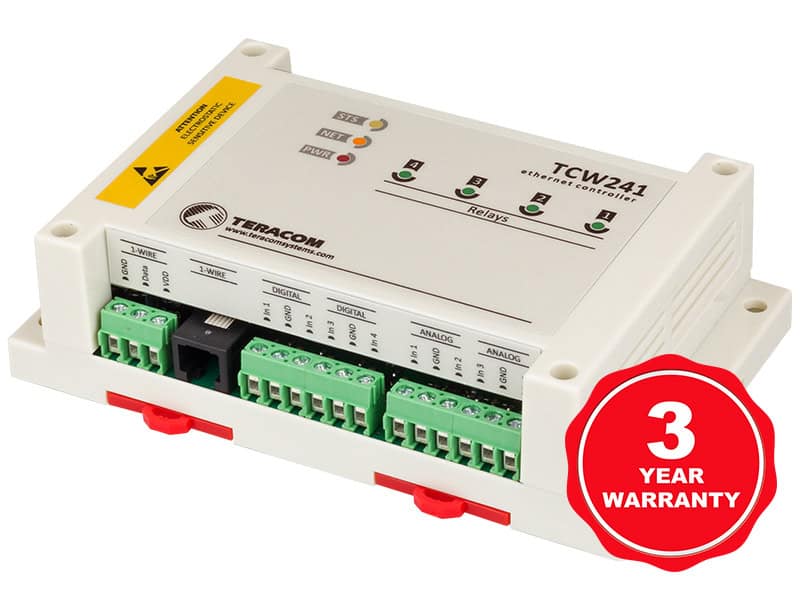

TCW241
Ethernet I/O module
Scheduled control and custom functions; Modbus TCP/IP, SNMP v2 and HTTP API.

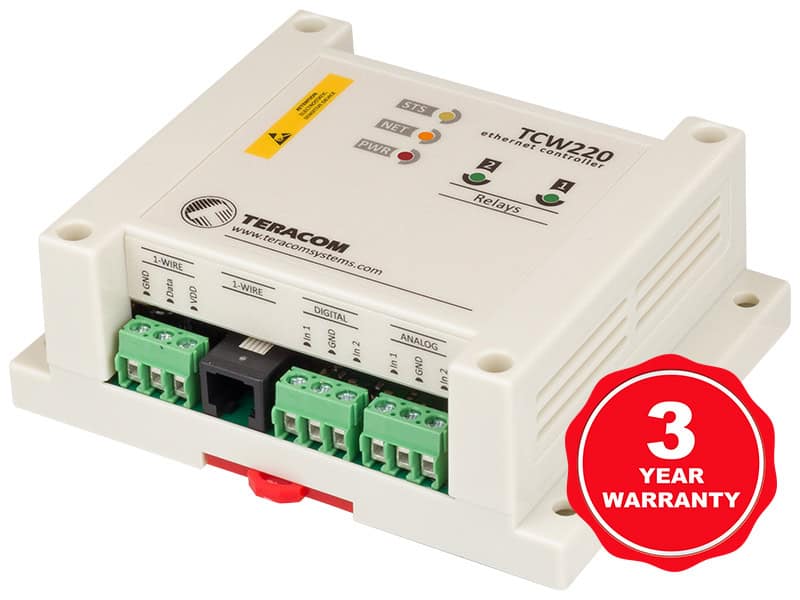

TCW220
Ethernet data logger
General-purpose data acquisition with Modbus, SNMP and HTTP protocols.

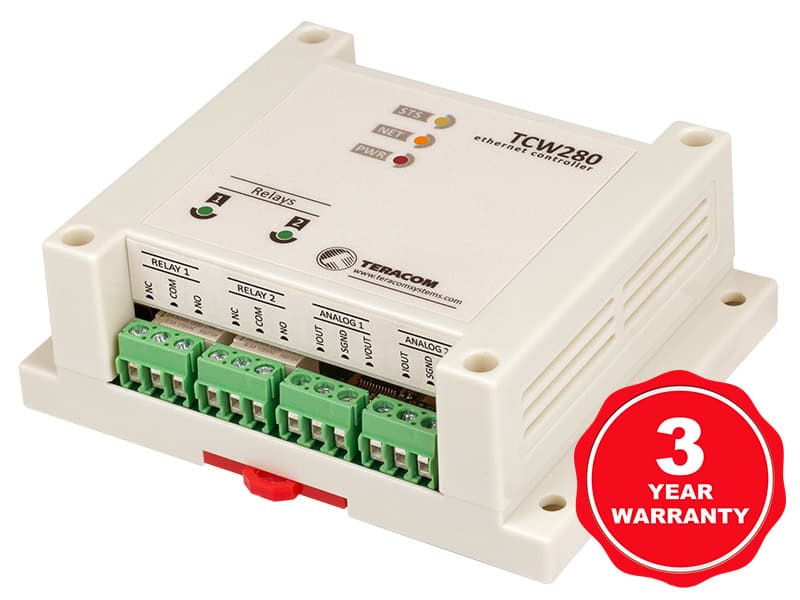

TCW280
Analog output module
Ethernet analog output module with galvanically isolated ports and Modbus TCP/IP.

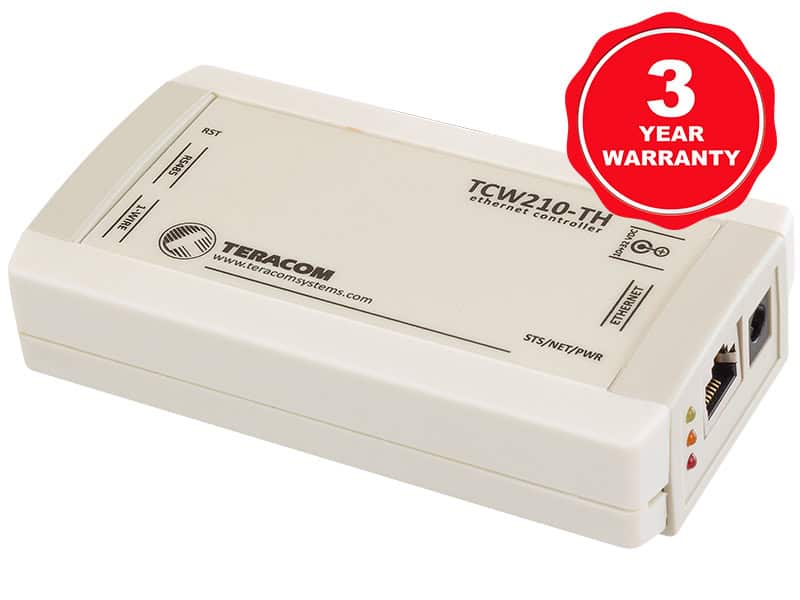

TCW210-TH
Temperature & humidity data logger
Logs up to 70,000 records with graphical temperature, humidity and dew-point display.
TCW122B-CM
Remote I/O module
HTTP API and SNMP v1 support for SCADA software.

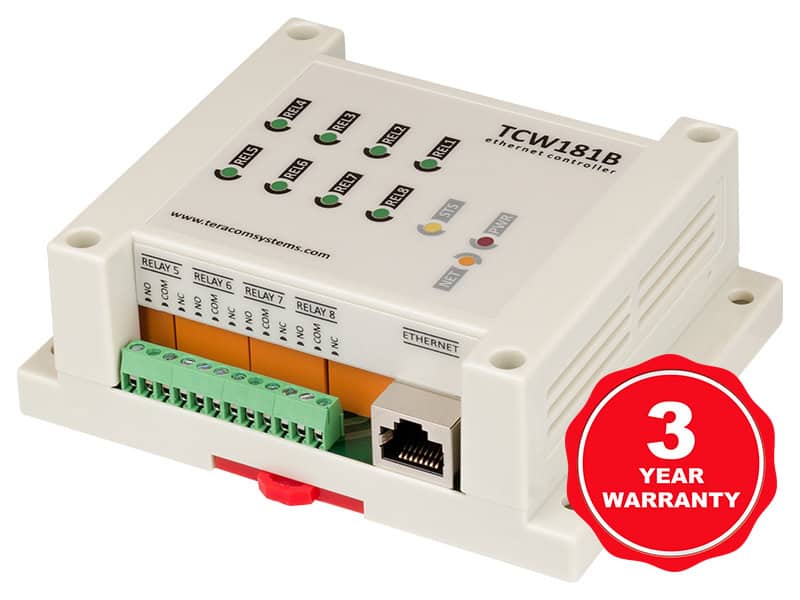

TCW181B-CM
Ethernet digital I/O module
HTTP API and SNMP v1 support for data acquisition and SNMP manager software.
TCW122B-WD
IP watchdog monitoring module
VLAN and MAC filters; SNMP v1 for SNMP manager applications.

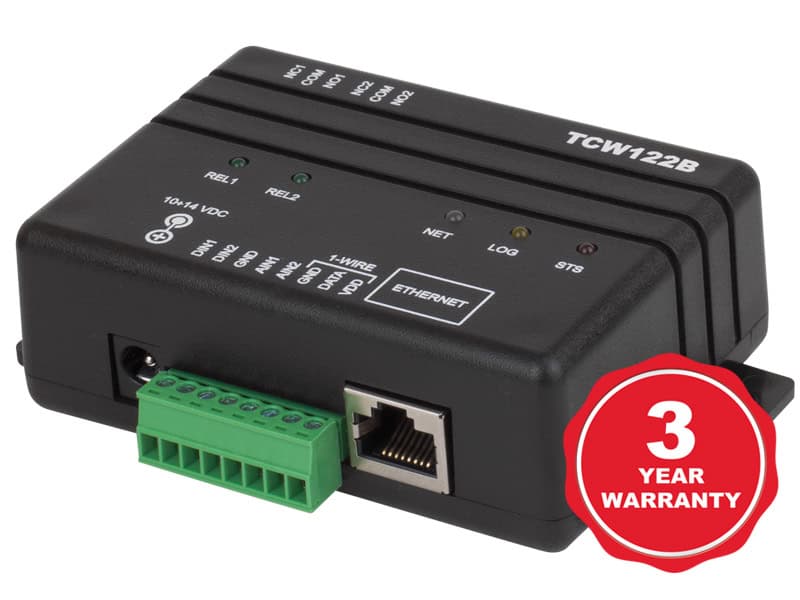

TCW122B-RR
Remote relay control module
Bi-directional remote relay control on a client–server model for industrial automation.
Key points
- Two series: TCW1xx uses an 8-bit chipset with 10 Mbit Ethernet for simple tasks — no TLS for SMTP, data logger or graphs, but at least one M2M protocol. Suitable for small to medium home and industrial automation and data-centre environmental monitoring.
- TCW2xx (actively produced) uses a 32-bit chipset with 10/100 Mbit Ethernet and supports Modbus TCP/IP, SNMP v2, HTTP API with XML/JSON status files and HTTP Post for client–server systems.
- All TCW2xx devices support TLS encryption for SMTP; selected models add data logging viewable through a standard browser.
