The new LP4 meter from FEMA, a simple solution for process signals in 4/20mA. Using a standard 96x48mm (1/8 DIN), it features a particular reading characteristic: a 7 segment red led display together with a loop powered instrument.
Usual loop powered meters mount a standard LCD crystal screen, offering reduced visibility and contrast. The LCD screen is a requirement due to the low consumption required by loop powered applications.
At FEMA we have developed the LP4 loop powered meter together with LED type reading, offering a bright and clear reading display, when compared to other conventional LCD equipments.
With the LP4 you can provide with local information to any installation currently in operation, by simply cutting the signal loop and adding the LP4 to your existing signal wires, with a minimal intervention in the normal operation of the system.
Configurable from its front key pad, it offers a simplified scaling menu, as well as different tools and useful functions for easy and fast installation, maintenance and troubleshooting.Example of these tools are the “Field correction” functions, to adapt the meter to the real signal of our field. The “Measure” function, to read the value of the input signal without need of additional measurement equipment. Or the “Square Root” function, to integrate the meter with flow applications based on differential pressure signals.The LP4 also includes the usual FEMA functions: fast access to configured functions, password, display filters, “STEPS” function, and it can be manufactured with other FEMA options such as NBT (without front keypad), optional full IP65 housing, and our range of mechanical accesories for 96×48 meters …. 50 years of experience included in the LP4.
Do you want to know more? Here we show you! Contact us.
Description
Loop powered panel meter. For 4/20mA signals.
Reading with 7 segment led, red color.
Easy configuration, and realiable, for industrial applications.
Characteristics
Type
- Digital panel meter
Function
- Process measure
Digits
- 4
Signal accepted
- mA
Input Ranges
- 4/20mA
Digit type
- 7 segments led
Digit height
- 14mm
Led colour
- Red
Power
- Loop powered
IP protection
- IP65 front
Mounting
- Panel mount
Front size
- 96x48mm front size
Included functions
- Fast access configurable menu
- Memory of maximum reading
- Field correction
- Measure
- Memory of minimum reading
- Square root
- Display filters
- Password
Output and control Options
There are no available options
Special Options
There are no available options
Other Options

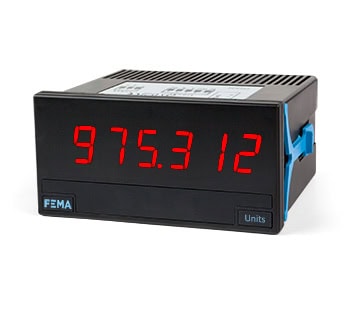

NBT
Without front keyboard
Accessories

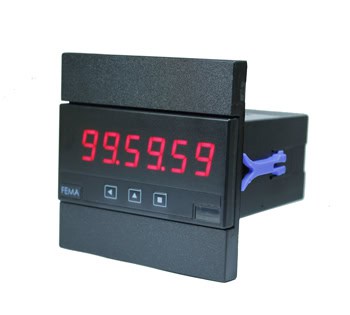

KA96
Format adapter to 96×96

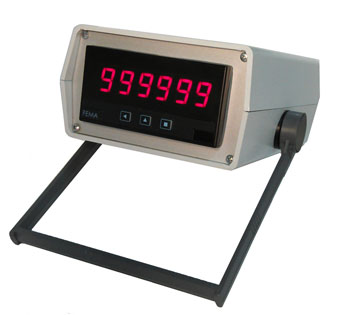

THM

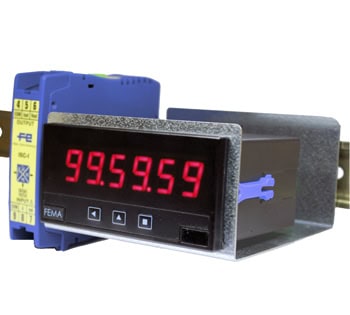

DRA

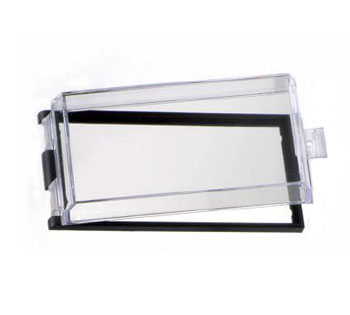

KIP

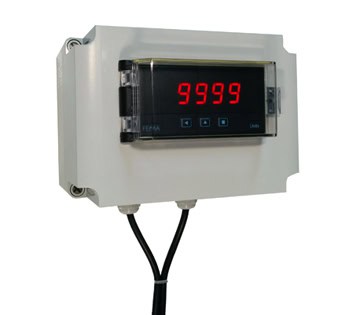

WME
