Kimden (Kimura Electric) LED indicators, annunciators, terminal blocks and mosaic panels

Kimura Electric Co., Ltd. (brand Kimden) is a Tokyo-headquartered Japanese maker of control-panel components, tracing its roots to an electrical trading house founded in 1927 and incorporated in 1954. Its products are built at its Ibaraki factory in Koga and cover LED indicator and annunciator lights, alarm annunciators, a wide range of terminal blocks, and mosaic graphic panels for control rooms.

Controsys stocks the Kimden range and uses it as the core of many of its own annunciator and mimic panels, so the same team that supplies the parts can also design, build and commission the complete panel. See the full product range or the Controsys home page for our panel-building services.

Enquire about Kimden (65) 6841 8834

Alarm monitoring

Annunciators

Kimden Solid-State Annunciators
01

Solid-State Annunciators

Compact modular electronic alarm annunciators that latch, flash and sound alarms from field contacts, for control rooms and substations.

  • KFA-600: KFA-64A (8-point) and KFA-64B (16-point) chassis with plug-in KFA-65 alarm units
  • 11 sequences (A1-A11), with or without first-out
  • DC 24V, 48V, 100/110V and 125V versions
  • One common unit can serve up to 100 alarm points
  • Tested to JIS C 0911/0912 and ANSI/IEEE C37.90a surge withstand
  • KFA-600
  • KFA-330/330C
  • KFA-330D/330G
  • KFA-333
Kimden Contact-Type Annunciators & Electronic Buzzers
02

Contact-Type Annunciators & Electronic Buzzers

Relay-based window annunciators where each unit combines alarm relay and lamp, assembled into multi-window displays, with matching alarm sounders.

  • KFA-88/98: one window per unit, assembled up to 6 x 10 windows
  • KFA-88H 32.5 x 67 mm and KFA-98B 36 x 86 mm flat lenses; slanted-lens N types
  • Relay coils from 24V to 220V AC and 24V to 125V DC; maintained/momentary/lock-out patterns
  • LE-88A LED lamp option for KFA-88
  • KZ-90N electronic buzzer: 4 selectable tones, up to 90 dB(C) at 1 m
  • KFA-100

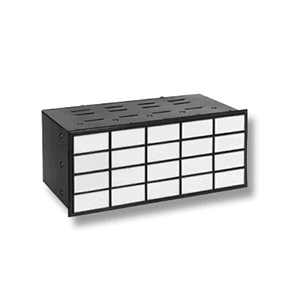

  • KFA-37
  • KFA-88/98
  • KFA-88BW/98BW

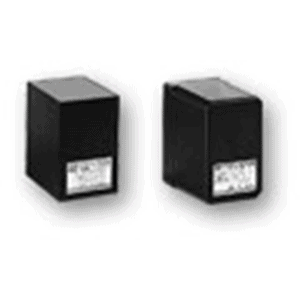

  • KFA-23/23SAF

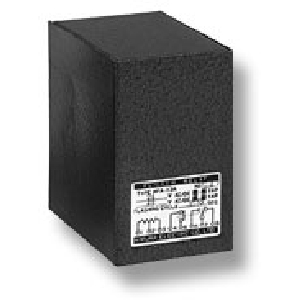

  • KFA-13A
  • KZ-90N
  • LE-88A

Control-room graphic panels

Mosaic mimic systems

Kimden Kimden Mosaic panels
03

Kimden Mosaic panels

Tile-based mimic panel systems for control-room graphic boards, with plug-in LED indicators, numeric displays and relay terminals, in engraved or UV-printed versions.

  • Grid systems KMP122, KMP15F and KMP244/248/488
  • UV Kimden Mosaic KMPU15F (UV-printed) alongside engraved mosaic
  • Mosaic LED indicators MD-122A/15F, MD-15H/244, MD-248/488
  • MDA-155, MDB-155 and MDC-155 numeric displays
  • TSE-80G, TSE-80 52 and sequencer-compatible TSE-80N relay terminal blocks
  • KMP122
  • KMP15F
  • KMP244/248/488
  • KMPU15F
  • MD-122A/15F
  • MD-15H/244
  • MD-248/488
  • MDA-155
  • MDB-155
  • MDC-155
  • TSE-80G
  • TSE-80N

Kimden LED

Indicator & annunciator lights

Kimden LED annunciator lights (multi-window)

LED annunciator lights (multi-window)

Engraved/legend-film multi-window LED indicator lights that gang into grids on panel fronts to show plant status and alarm points at a glance; intended for indoor control panels.

  • KFE-D8/D8P series in 27F/27H/37F/37H windows: 28x28, 28x58, 38x38 and 38x78 mm lit areas
  • LED colours milky white, red, green, orange, yellow, blue and white; red point-illumination option
  • AC/DC 24V full-voltage, with ET-8 transformer and ER-8 resistor adaptors for AC 100-220V and AC/DC 48-125V
  • D8P pop-up screw terminals with finger-protect construction; front-replaceable LED units
  • RoHS compliant; lens and frame rated UL94V-0; printable NF legend films
  • KFE-D8/D8P
  • FA(W)
  • KFE-HD
  • KFE-D6
  • ET/ER/EB/EC-8 (power adaptors)
Kimden LED Square Indicator Lights

LED Square Indicator Lights

Square and rectangular panel-mount LED pilot/indicator lamps for switchboards and control panels, available as single units in several window sizes.

  • KHE-27/37 series: 28x28, 28x58, 38x38 and 38x78 mm lit areas on 30/40 mm pitches
  • Four-element GaN LEDs, up to 4x brighter than the previous KHE-27/37 with lower power draw
  • AC/DC universal input with induced-voltage false-lighting protection; 24V to AC 200/220V versions
  • Single-colour, split, two-colour and point-illumination lighting styles; RoHS compliant
  • Panel thickness 1-6 mm, CA-1 mounting brackets, front-replaceable LED units
  • KHE-27/37
  • KHE-36F/H
  • KHE-40F/H
  • FU
  • KHE-12H
  • KHE/KTE/KRE-24
  • KHE-1000
  • KHE-1063
  • KHE-1186
  • ET/ER/EB/EC-8
Kimden LED Round Indicator Lights

LED Round Indicator Lights

Round panel-mount LED pilot lamps from miniature 8 mm to standard 22 mm sizes for machine and switchboard status indication.

  • KRE-300 series in five sizes: mounting holes from 8.1 to 22.3 mm (KRE-308 to KRE-322)
  • IP65 with round and round-flat lenses; square and rectangular lens options
  • AC/DC 12V to 200/220V on KRE-316/322; DC 12/24V on miniature KRE-308/310/312
  • Wide viewing angle; improved immunity to induced voltage and noise
  • UL94V-0 lens and holder materials; RoHS compliant
  • KRE-08/10/12
  • KRE-100
  • KPE/KRE-200
  • KRE-300
  • KHE-2010
  • KHE-2200S
Kimden LED Light Sources

LED Light Sources

High-brightness LED lamps that replace incandescent bulbs in existing indicators and annunciators, plus surface-emitting LED light sources.

  • LE series LED bulbs drawing roughly 0.3-0.7 W, with no filament burnout
  • Bases include BA9S (LE-9SD), E-10 (LE-10D), E-12 (LE-12D) and dedicated LE-88A for KFA-88 annunciators
  • Built-in series resistors; ratings from DC 12V to AC/DC 125V depending on model
  • Colours red, green, orange, yellow and blue on high-brightness versions
  • TFP-21 and TFN series surface-emitting LED light sources
  • LE series
  • TFP-21
  • TFN
Kimden Incandescent Indicator Lights

Incandescent Indicator Lights

Kimden's traditional bulb-type square and round indicator lamps, still listed alongside matching options and replacement bulbs for existing panels.

  • Square types: KH/KT/KR-88, KP/KT/KR-337 and KP/KT/KR-345
  • Round types: KP-100 and KH-2000 series
  • KT-23/25 options and a compatible-bulb list
  • Bulbs replaceable with Kimden LE series LED lamps
  • KH/KT/KR-88
  • KP/KT/KR-337
  • KP/KT/KR-345
  • KP-100
  • KH-2000
  • KT-23/25

Kimden connection

Terminal blocks & interface terminals

Kimden Interface, PCB & low-voltage terminal blocks

Interface, PCB & low-voltage terminal blocks

Kimden's first terminal-block group, covering PCB terminals, low-voltage blocks, connector-to-screw interface terminals for PLC/flat-cable wiring, fixed and feed-through types.

  • TS-312/314 interface blocks: Hirose HIF3BA 2.54 mm flat-cable connector to screw terminals, 20-64 poles
  • TS-312 at 7.62 mm pitch (M3) and TS-314 at 8.6 mm pitch (M3.5); DIN-rail H versions; JIS C 2811
  • TSD-58 and TSD-80 interface terminal blocks
  • TE-10 PCB terminals; TS-100 and TS-122/123 low-voltage blocks
  • Feed-through TS-1398A-1401A and TS-280; branch block TS-1003
  • TE-10
  • TS-100
  • TS-122/123
  • TS-312/314
  • TSD-58
  • TSD-80
  • TS-212
  • TS-615/625
  • TSU-615/625C
  • TS-240C/250C
  • TS-1398A/1399A/1400A/1401A
  • TS-280
Kimden Rail-mount, disconnect & fuse terminal blocks

Rail-mount, disconnect & fuse terminal blocks

Power and control terminal blocks for panel wiring, supplied as single units or rail- and bolt-assembled strips, including disconnect, fuse and two-tier types.

  • TSG screw-up series: 8 models TSG-15A to TSG-130A, rated 600V
  • TSG listed to UL 1059, CSA C22.2 No.158 and TUV EN60947-7-1 (except TSG-130A)
  • Rail-mount TS-511R/TS-620A and assembled TS/TSU-800
  • Disconnect TSK-511N, TSK-511, TM-552, TM-557; fuse TSF-511N/TSF-511
  • Two-tier TS-555/TS-292 and TSH stud terminal blocks
  • TS-511R
  • TS-620A
  • TSG
  • TS/TSU-800
  • TS-555
  • TS-292
  • TSK-511N
  • TSK-511
  • TM-552
  • TM-557
  • TSF-511N
  • TSF-511
Kimden Wire-Saving Terminals

Wire-Saving Terminals

Serial-link terminal units that carry many on/off I/O signals over a single pair of existing VCTF cable, cutting panel-to-field wiring.

  • WS-TD16MC: 16 I/O points per unit, up to 16 units for 128 points
  • WS-TD32MA/MB master-slave pair: 32 freely assignable I/O points
  • DC 24V supply; 500 mA open-drain outputs per point
  • Up to 500 m transmission with multiple power feeds
  • Two-colour LEDs per terminal; DIN-rail or direct mounting
  • WS-TD16MC
  • WS-TD32MA
  • WS-TD32MB
Kimden Fire- and Heat-Resistant Products

Fire- and Heat-Resistant Products

Indicator lamps, terminal blocks and fuse holders for emergency switchboards and fire-protection power circuits that must keep working in a fire.

  • TS-904K/905K/906K/908K alumina-ceramic fire-resistant terminal blocks, 60-400 A, 660V
  • Keep at least 0.4 MOhm insulation through an 840 C, 30-minute fire curve; JSIA certified
  • KP-251K/301K and KT-250K/300K fire- and heat-resistant indicator lamps
  • Class 1 (TS-207BK) and class 2 (TS-212/625/240C/250CK2, TS-800K2) heat-resistant terminal blocks
  • F-10BK/10BK2 heat-resistant fuse holders
  • KP-251K/301K
  • KT-250K/300K
  • TS-904K/905K/906K/908K
  • TS-207BK
  • TS-212/625/240C/250CK2
  • TS-800K2
  • F-10BK/10BK2
  • KT-31K
Kimden Environment-Resistant Terminal Blocks

Environment-Resistant Terminal Blocks

Terminal blocks built for extreme temperatures, including cold-resistant types for sub-zero installations and heat-resistant types.

  • TSB cold-resistant series operates from -50 C to 85 C
  • TSB-20/30/60 rated 600V at 20, 30 and 60 A, 2 to 20 poles
  • Phenolic resin insulation; UL94V-0 parts; NECA C 2811
  • Heat-resistant TS-207B and TS-904/905
  • TS-207B
  • TS-904/905
  • TSB-20
  • TSB-30
  • TSB-60
Kimden Fuse holders, sockets & bulbs

Fuse holders, sockets & bulbs

Panel accessories that go with Kimden indicators and terminal blocks: fuse holders and carriers, low- and high-voltage fuses, lamp sockets and bulbs.

  • F/FC series fuse holders and carriers
  • HA2/GAC2/NRF5-30 fuses
  • F-05/06H high-voltage fuse holders; D52/MF67NMM/HD2 high-voltage fuses
  • Sockets S-24/28/30A/27S-2, KP-2R/170/171T, KP-173T/175
  • Indicator bulbs T-4.2 to T-26
  • F/FC
  • HA2/GAC2/NRF5-30
  • F-05/06H
  • D52/MF67NMM/HD2
  • S-24/28/30A/27S-2
  • KP-2R/170/171T
  • KP-173T/175
  • T-4.2 to T-26
